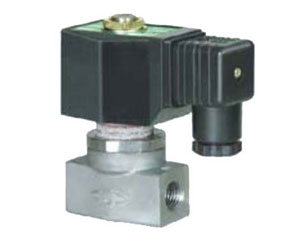

CB Series Kick Pilot Piston Solenoid Valve
CB Series Kick Pilot Piston Solenoid Valve

 Features

  Reliable action under no differential pressure.

  Compact design.

  Low price.



 Technical specification

Item

Parameter

 Orifice size (mm)

525

 Operating pressure (MPa)

01.6

 Medium temperature (℃)

-1060 (NBR)

0150 (VITON)

-10180 (PTFE)

 Leakage (ml/min.)

 0.15



Model

Orifice

size

(mm)

Kv

Max. operating pressure differential (MPa)

Port size

L

H

Power consumption

AC/DC

Air

Water, light oil

Oil (below 50cSt)

Steam

AC

DC

AC

DC

AC

DC

AC

 CB1S-05

5

0.32

1.6

1.0

1.6

1.0

0.8

0.8

1.0

M14×1.5

50

81

6.7VA/11W

 CB1S-06

6

0.54

1.6

1.0

1.6

1.0

0.8

0.8

1.0

M14×1.5

 CB1S-08

8

0.8

1.6

0.8

1.6

0.8

0.8

0.8

0.8

M14×1.5

 CB1S-10

10

1.5

1.6

0.8

1.6

0.8

0.8

0.8

0.8

G3/8

60

106

13VA/20W

 CB1S-12

12

2

1.6

0.8

1.6

0.8

0.8

0.8

0.8

G1/2

 CB1S-20

20

6

0.8

G3/4

 100

 110

  6.7VA/11W

 CB1S-25

25

8.5

0.8

G1

 105

 96

  13VA/20W
